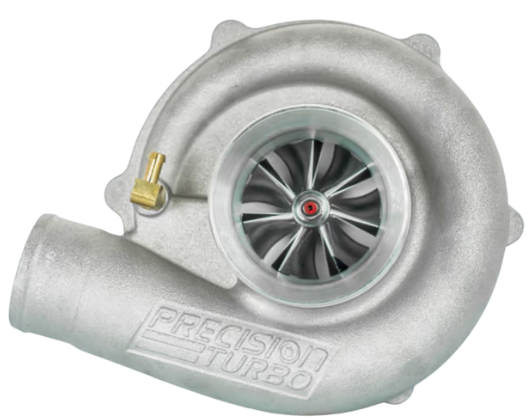

Precision Turbo - NEXT GEN R 6470 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R - 27307215299

Precision Turbo & Engine is deeply rooted in an unyielding commitment to performance and reliability. In an industry where every detail matters, they strive to engineer products that not only unleash unparalleled power but also stand the test of time, ensuring that you can drive with confidence and peace of mind. Whether your application is for the street or setting land speed records at Bonneville, their relentless pursuit of perfection drives them to create turbochargers and engines that set industry standards, embodying a synergy of innovation and durability. Your vehicle's heart should pulsate with relentless force, coupled with an unwavering reliability that transforms every drive into an extraordinary experience. Trust in Precision Turbo & Engine to fuel your journey with uncompromising performance and reliability, taking automotive excellence to new horizons.

HORSEPOWER: RACE TURBO
TYPE: CLASS SPECIFIC TURBOCHARGERS

RECOMMENDED OIL FEED FITTING: PFT047-3039
OIL FEED PORT THREAD SIZE: 1/8 INCH NPT
RECOMMENDED OIL DRAIN FLANGE: PTP074-2108
OIL DRAIN GASKET: PTP075-5012
OIL DRAIN BOLT SIZE: M8-1.25
COMPRESSOR COVER O-RING KIT: N/A
COMPRESSOR COVER TO TURBO CLAMP KIT: PTP070-1009
COMPRESSOR COVER BOLT SIZE: M6-1.00 X 12
COMPRESSOR COVER DISCHARGE CLAMP KIT: N/A
TURBINE HOUSING TO TURBO CLAMP KIT: PTP070-1030
TURBINE HOUSING BOLT SIZE: 5/16-18
TURBINE HOUSING INLET FLANGE: PTP074-1040 or 1042
TURBINE HOUSING INLET GASKET: N/A
TURBINE HOUSING INLET CLAMP: PTP071-1029
TURBINE HOUSING OUTLET FLANGE: PTP074-3070 or 3072
TURBINE HOUSING OUTLET CLAMP: PTP071-1032

NOTES: PTP074-1040 2-3/4" TUBE INLET, PTP074-1042 3" TUBE INLET / PTP074-3070 3.5" TUBE OUTLET, PTP074-3070 4" TUBE OUTLET
Estimated Weight: 19.5
