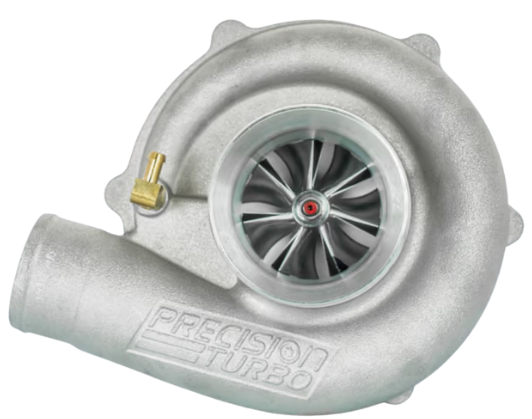

Precision Turbo - GEN1 PT5862 JB SP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R - 10704007089

Precision Turbo & Engine is deeply rooted in an unyielding commitment to performance and reliability. In an industry where every detail matters, they strive to engineer products that not only unleash unparalleled power but also stand the test of time, ensuring that you can drive with confidence and peace of mind. Whether your application is for the street or setting land speed records at Bonneville, their relentless pursuit of perfection drives them to create turbochargers and engines that set industry standards, embodying a synergy of innovation and durability. Your vehicle's heart should pulsate with relentless force, coupled with an unwavering reliability that transforms every drive into an extraordinary experience. Trust in Precision Turbo & Engine to fuel your journey with uncompromising performance and reliability, taking automotive excellence to new horizons.

HORSEPOWER: 640
TYPE: GEN 1 CEA SERIES TURBOCHARGERS JOURNAL BEARING ONLY

RECOMMENDED OIL FEED FITTING: PFT047-3039
OIL FEED PORT THREAD SIZE: 1/8 INCH NPT
RECOMMENDED OIL DRAIN FLANGE: PTP074-2108
OIL DRAIN GASKET: PTP075-5012
OIL DRAIN BOLT SIZE: M8-1.25
COMPRESSOR COVER O-RING KIT: PTP070-1049
COMPRESSOR COVER TO TURBO CLAMP KIT: PTP070-1006
COMPRESSOR COVER BOLT SIZE: 5/16-18 X 3/8
COMPRESSOR COVER DISCHARGE CLAMP KIT: N/A
TURBINE HOUSING TO TURBO CLAMP KIT: PTP070-1024
TURBINE HOUSING BOLT SIZE: M8-1.25
TURBINE HOUSING INLET FLANGE: PTP074-1008
TURBINE HOUSING INLET GASKET: PTP075-5003
TURBINE HOUSING INLET CLAMP: N/A
TURBINE HOUSING OUTLET FLANGE: PTP074-3005
TURBINE HOUSING OUTLET CLAMP: N/A

NOTES:
Estimated Weight: 20.5
