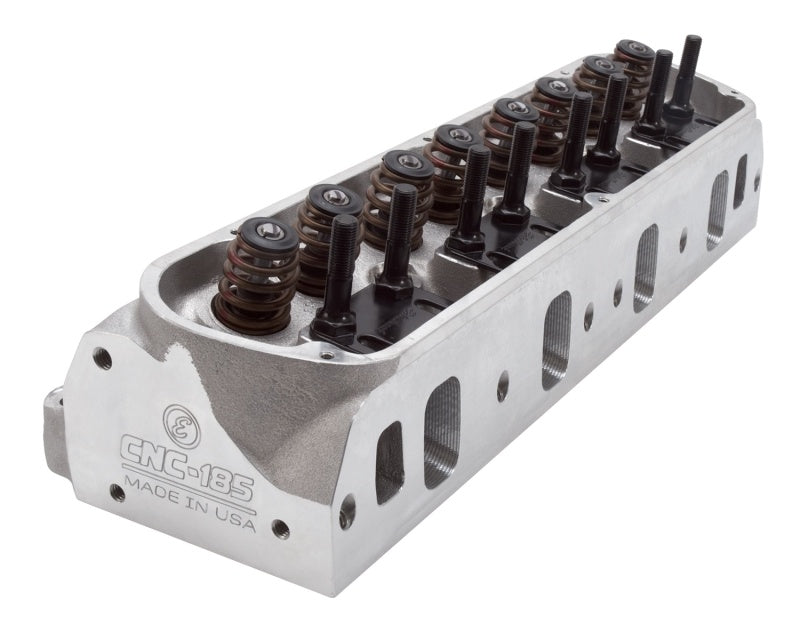

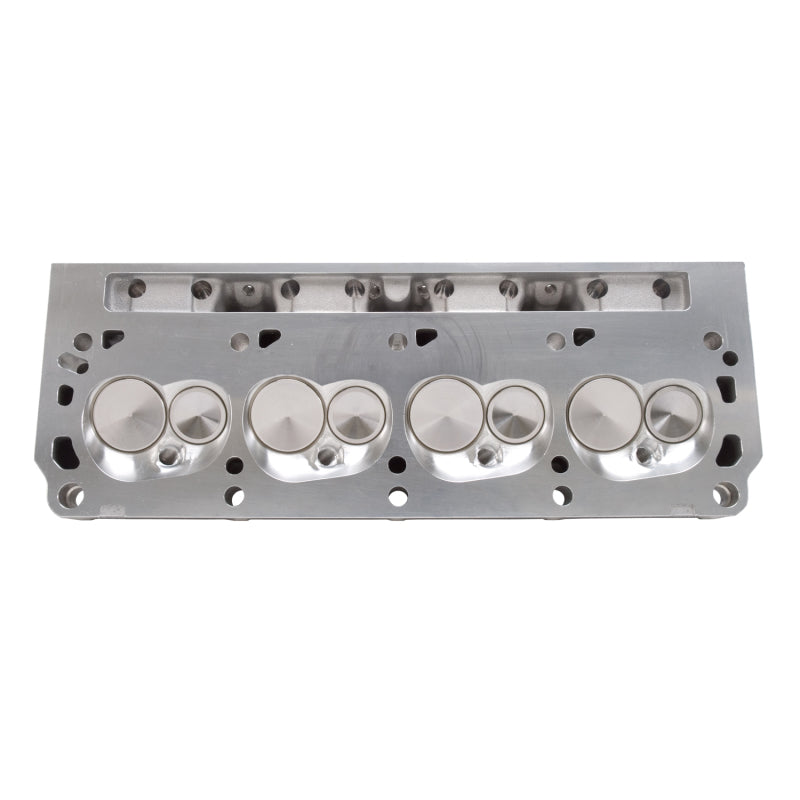

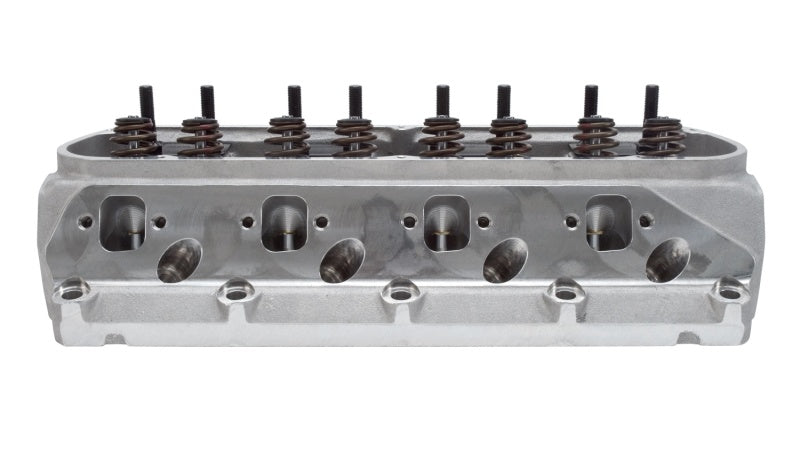

Cylinder Head Specifications: Combustion chamber volume: 59cc, Intake runner volume: 185cc, Exhaust runner volume: 75cc, Intake valve diameter: 2.02in, Exhaust valve diameter: 1.57in, Valve stem diameter: 8mm, Valve guides: Manganese steel, Deck thickness: 5/8in, Valve spring diameter: 1.30in, Valve spring maximum lift: .600in, Rocker stud: 7/16in, Guideplate: Hardened steel, Pushrod diameter: 5/16in, Valve angle: 18, Exhaust port location: Stock, Spark plug fitment: 14mm x 3/4 reach, gasket seat . Match with Edelbrock head gasket sets. IMPORTANT NOTES: The E-CNC 185 cylinder heads for small-block Ford are an all new design that is CNC ported to achieve optimal air-flow for maximum horsepower and torque in high performance street and light duty racing applications. The casting and port designs are all new and engineered for great performance. E-CNC heads feature fully 100percent CNCd intake ports, combustion chambers and exhaust ports for improved air-flow. These heads feature 2.02Gg intake and 1.57Gg exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo. These small-block Ford heads have an aggressive 18 valve angle for maximum performance and accept common intake manifolds such as Edelbrock Performer RPM and RPM II. Deck thickness: 5/8in, rocker stud diameter: 3/8in, pushrod diameter: 5/16in (width of slot in guide plate). Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods No.9632 are recommended. Requires hardened pushrods. Pedestal mount rockers
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1966-1968 | AC | Shelby Cobra | Base |
| 1970-1971 | DeTomaso | Mangusta | Base |
| 1963 | Ford | 300 | Base |
| 1966-1974 | Ford | Bronco | Base |
| 1975-1977,1980-1993 | Ford | Bronco | Custom |
| 1985-1996 | Ford | Bronco | Eddie Bauer |
| 1975 | Ford | Bronco | Northland |
| 1975 | Ford | Bronco | Ranger |
| 1980-1981 | Ford | Bronco | Ranger XLT |
| 1968-1969 | Ford | Bronco | Roadster |
| 1975-1977 | Ford | Bronco | Sport |
| 1968-1973 | Ford | Bronco | Wagon |
| 1990-1996 | Ford | Bronco | XL |
| 1982-1983 | Ford | Bronco | XLS |
| 1984-1992,1994-1996 | Ford | Bronco | XLT |
| 1982-1983,1993 | Ford | Bronco | XLT Lariat |
| 1992 | Ford | Bronco | XLT Nite |
| 1995-1996 | Ford | Bronco | XLT Sport |
| 1962-1974 | Ford | Country Sedan | Base |
| 1962-1974,1987-1991 | Ford | Country Squire | Base |
| 1987-1991 | Ford | Country Squire | LX |
| 1964-1972 | Ford | Custom | Base |
| 1964-1974 | Ford | Custom 500 | Base |
| 1969-1975,1979-1982 | Ford | E-100 Econoline | Base |
| 1975,1979-1982 | Ford | E-100 Econoline | Chateau |
| 1969-1974 | Ford | E-100 Econoline | Club Wagon |
| 1975,1979-1983 | Ford | E-100 Econoline | Custom |
| 1975 | Ford | E-100 Econoline | Northland |
| 1983 | Ford | E-100 Econoline | XL |
| 1979-1982 | Ford | E-100 Econoline Club Wagon | Base |
| 1979-1982 | Ford | E-100 Econoline Club Wagon | Chateau |
| 1979-1983 | Ford | E-100 Econoline Club Wagon | Custom |
| 1983 | Ford | E-100 Econoline Club Wagon | XL |
| 1975,1979-1982,1984-1986,1992-1996 | Ford | E-150 Econoline | Base |
| 1975,1979-1982 | Ford | E-150 Econoline | Chateau |
| 1975,1979-1983,1987-1991 | Ford | E-150 Econoline | Custom |
| 1975 | Ford | E-150 Econoline | Northland |
| 1983-1996 | Ford | E-150 Econoline | XL |
| 1979-1982,1984-1986 | Ford | E-150 Econoline Club Wagon | Base |
| 1979-1982,1992-1996 | Ford | E-150 Econoline Club Wagon | Chateau |
| 1979-1983,1987-1996 | Ford | E-150 Econoline Club Wagon | Custom |
| 1983-1991 | Ford | E-150 Econoline Club Wagon | XL |
| 1984-1996 | Ford | E-150 Econoline Club Wagon | XLT |
| 1969-1974 | Ford | E-200 Econoline | Base |
| 1971-1972 | Ford | E-200 Econoline | Chateau Wagon |
| 1969-1974 | Ford | E-200 Econoline | Club Wagon |
| 1970-1974 | Ford | E-200 Econoline | Custom Wagon |
| 1975,1979-1982,1984-1986 | Ford | E-250 Econoline | Base |
| 1975,1979-1982 | Ford | E-250 Econoline | Chateau |
| 1975,1979-1983,1987-1991 | Ford | E-250 Econoline | Custom |
| 1975 | Ford | E-250 Econoline | Northland |
| 1983-1991 | Ford | E-250 Econoline | XL |
| 1979-1980 | Ford | E-250 Econoline Club Wagon | Base |
| 1979-1980 | Ford | E-250 Econoline Club Wagon | Chateau |
| 1979-1980 | Ford | E-250 Econoline Club Wagon | Custom |
| 1969-1974 | Ford | E-300 Econoline | Base |
| 1970-1974 | Ford | E-300 Econoline | Chateau Wagon |
| 1969-1974 | Ford | E-300 Econoline | Club Wagon |
| 1971-1972 | Ford | E-300 Econoline | Custom Wagon |
| 1975,1979-1982 | Ford | E-350 Econoline | Base |
| 1975,1979-1982 | Ford | E-350 Econoline | Chateau |
| 1975,1979-1982 | Ford | E-350 Econoline | Custom |
| 1975 | Ford | E-350 Econoline | Northland |
| 1979-1980 | Ford | E-350 Econoline Club Wagon | Base |
| 1979-1980 | Ford | E-350 Econoline Club Wagon | Chateau |
| 1979-1980 | Ford | E-350 Econoline Club Wagon | Custom |
| 1996-2001 | Ford | Explorer | Eddie Bauer |
| 1996-2001 | Ford | Explorer | Limited |
| 1999 | Ford | Explorer | XLS |
| 1996-2001 | Ford | Explorer | XLT |
| 1969-1974,1976-1978,1983 | Ford | F-100 | Base |
| 1975-1982 | Ford | F-100 | Custom |
| 1975-1978 | Ford | F-100 | Northland |
| 1975-1981 | Ford | F-100 | Ranger |
| 1978-1981 | Ford | F-100 | Ranger Lariat |
| 1975-1981 | Ford | F-100 | Ranger XLT |
| 1982-1983 | Ford | F-100 | XL |
| 1982-1983 | Ford | F-100 | XLS |
| 1977 | Ford | F-100 | XLT |
| 1982-1983 | Ford | F-100 | XLT Lariat |
| 1976-1978,1983-1986 | Ford | F-150 | Base |
| 1975-1982,1987-1992 | Ford | F-150 | Custom |
| 1995-1996 | Ford | F-150 | Eddie Bauer |
| 1975-1978 | Ford | F-150 | Northland |
| 1975-1981 | Ford | F-150 | Ranger |
| 1978-1981 | Ford | F-150 | Ranger Lariat |
| 1975-1981 | Ford | F-150 | Ranger XLT |
| 1995-1996 | Ford | F-150 | Special |
| 1982-1996 | Ford | F-150 | XL |
| 1982-1983 | Ford | F-150 | XLS |
| 1977,1983-1984,1993-1996 | Ford | F-150 | XLT |
| 1982,1985-1992 | Ford | F-150 | XLT Lariat |
| 1969-1974,1977-1978,1983-1986 | Ford | F-250 | Base |
| 1977-1978,1980-1982,1987-1992 | Ford | F-250 | Custom |
| 1995-1996 | Ford | F-250 | Eddie Bauer |
| 1977-1978 | Ford | F-250 | Northland |
| 1977-1978,1980-1981 | Ford | F-250 | Ranger |
| 1978,1980-1981 | Ford | F-250 | Ranger Lariat |
| 1977-1978,1980-1981 | Ford | F-250 | Ranger XLT |
| 1995-1996 | Ford | F-250 | Special |
| 1982-1996 | Ford | F-250 | XL |
| 1982-1983 | Ford | F-250 | XLS |
| 1977,1983-1984,1993-1996 | Ford | F-250 | XLT |
| 1982,1985-1992 | Ford | F-250 | XLT Lariat |
| 1972-1974,1976-1978 | Ford | F-350 | Base |
| 1975-1978,1980 | Ford | F-350 | Custom |
| 1975-1978 | Ford | F-350 | Northland |
| 1975-1978,1980 | Ford | F-350 | Ranger |
| 1978,1980 | Ford | F-350 | Ranger Lariat |
| 1975-1978,1980 | Ford | F-350 | Ranger XLT |
| 1977 | Ford | F-350 | XLT |
| 1962-1970 | Ford | Fairlane | 500 |
| 1966-1967 | Ford | Fairlane | 500XL |
| 1962-1969 | Ford | Fairlane | Base |
| 1978-1979 | Ford | Fairmont | Base |
| 1978-1979 | Ford | Fairmont | Futura |
| 1962-1970 | Ford | Falcon | Base |
| 1964-1970 | Ford | Falcon | Futura |
| 1963-1965 | Ford | Falcon | Futura Sprint |
| 1962-1965 | Ford | Falcon Sedan Delivery | Base |
| 1963 | Ford | Ford 300 | Base |
| 1963-1967 | Ford | Galaxie | Base |
| 1963-1974 | Ford | Galaxie 500 | Base |
| 1962-1964 | Ford | Galaxie 500 | Sunliner |
| 1962-1964 | Ford | Galaxie 500 | Victoria |
| 1963-1970 | Ford | Galaxie 500 | XL |
| 1972-1974 | Ford | Gran Torino | Base |
| 1973-1974 | Ford | Gran Torino | Brougham |
| 1974 | Ford | Gran Torino | Elite |
| 1972-1974 | Ford | Gran Torino | Sport |
| 1972-1974 | Ford | Gran Torino | Squire |
| 1975-1980 | Ford | Granada | Base |
| 1978-1980 | Ford | Granada | ESS |
| 1975-1980 | Ford | Granada | Ghia |
| 1964-1965,1968 | Ford | GT40 | Base |
| 1966-1969 | Ford | GT40 | MK III |
| 1965-1974,1977-1982 | Ford | LTD | Base |
| 1970-1974 | Ford | LTD | Brougham |
| 1979-1986 | Ford | LTD | Country Squire |
| 1986 | Ford | LTD | Country Squire LX |
| 1980-1986 | Ford | LTD | Crown Victoria |
| 1986 | Ford | LTD | Crown Victoria LX |
| 1977-1979 | Ford | LTD | Landau |
| 1980-1982 | Ford | LTD | S |
| 1987-1991 | Ford | LTD Crown Victoria | Base |
| 1987-1991 | Ford | LTD Crown Victoria | LX |
| 1987-1991 | Ford | LTD Crown Victoria | S |
| 1977-1979 | Ford | LTD II | Base |
| 1977-1978 | Ford | LTD II | Brougham |
| 1979 | Ford | LTD II | Landau |
| 1977-1979 | Ford | LTD II | S |
| 1971-1977 | Ford | Maverick | Base |
| 1975-1977 | Ford | Maverick | Grabber |
| 1964-1973,1979 | Ford | Mustang | Base |
| 1970-1971 | Ford | Mustang | Boss 302 |
| 1979 | Ford | Mustang | Ghia |
| 1970-1973 | Ford | Mustang | Grande |
| 1983-1985 | Ford | Mustang | GT |
| 1984 | Ford | Mustang | GT-350 20th Anniversary |
| 1984 | Ford | Mustang | L |
| 1984 | Ford | Mustang | LX |
| 1970-1973 | Ford | Mustang | Mach 1 |
| 1965-1968 | Ford | Mustang | Shelby GT-350 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1975-1978 | Ford | Mustang II | Base |
| 1975-1978 | Ford | Mustang II | Ghia |
| 1975-1978 | Ford | Mustang II | Mach 1 |
| 1962-1974 | Ford | Ranch Wagon | Base |
| 1970 | Ford | Ranch Wagon | Police Cruiser |
| 1967-1974,1977-1979 | Ford | Ranchero | 500 |
| 1967 | Ford | Ranchero | 500 XL |
| 1962-1971 | Ford | Ranchero | Base |
| 1966 | Ford | Ranchero | Custom |
| 1968-1974,1977-1979 | Ford | Ranchero | GT |
| 1970-1974,1977-1979 | Ford | Ranchero | Squire |
| 1963-1964 | Ford | Sprint | Base |
| 1977-1981,1983-1988 | Ford | Thunderbird | Base |
| 1978 | Ford | Thunderbird | Diamond Jubilee |
| 1984-1986 | Ford | Thunderbird | Elan |
| 1984-1985 | Ford | Thunderbird | Fila |
| 1979,1981,1983 | Ford | Thunderbird | Heritage |
| 1983-1988 | Ford | Thunderbird | LX |
| 1980 | Ford | Thunderbird | Silver Anniversary |
| 1983-1988 | Ford | Thunderbird | Sport |
| 1978-1981 | Ford | Thunderbird | Town Landau |
| 1971 | Ford | Torino | 500 |
| 1968-1974 | Ford | Torino | Base |
| 1970-1971 | Ford | Torino | Brougham |
| 1968-1971 | Ford | Torino | GT |
| 1969-1971 | Ford | Torino | Squire |
| 1964-1965 | Griffith | 200 | Base |
| 1980,1982-1987 | Lincoln | Continental | Base |
| 1982-1987 | Lincoln | Continental | Givenchy |
| 1982 | Lincoln | Continental | Signature |
| 1983-1985 | Lincoln | Continental | Valentino |
| 1980-1983 | Lincoln | Mark VI | Base |
| 1982-1983 | Lincoln | Mark VI | Bill Blass |
| 1982 | Lincoln | Mark VI | Givenchy |
| 1982-1983 | Lincoln | Mark VI | Pucci |
| 1982-1983 | Lincoln | Mark VI | Signature |

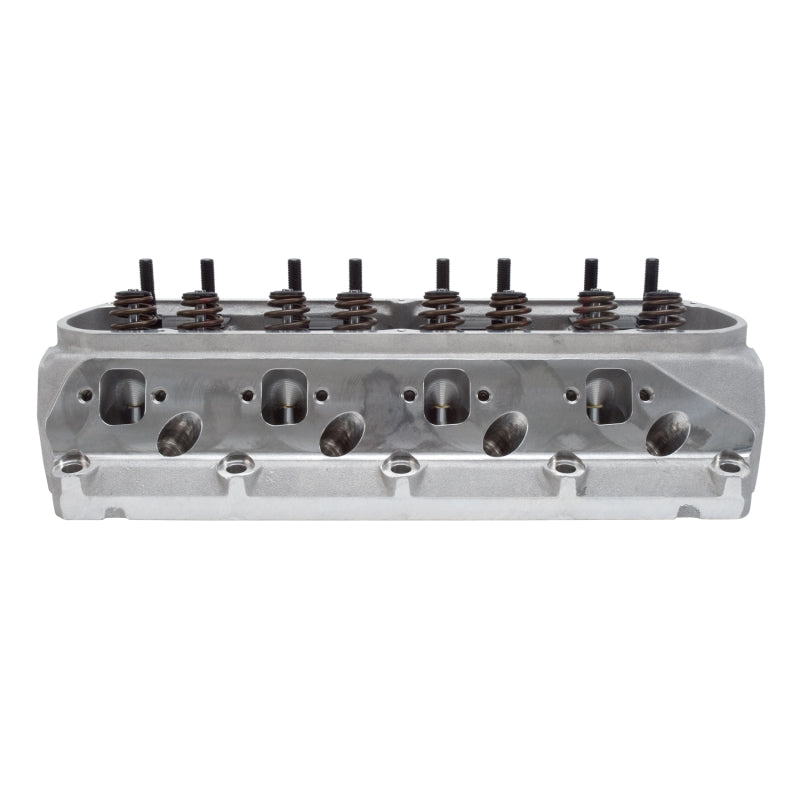

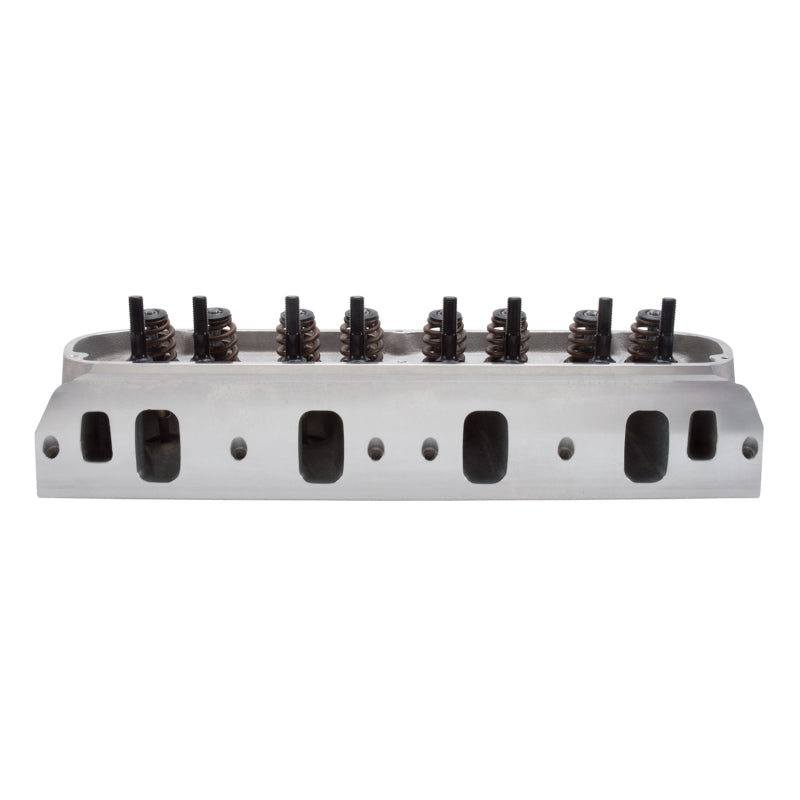

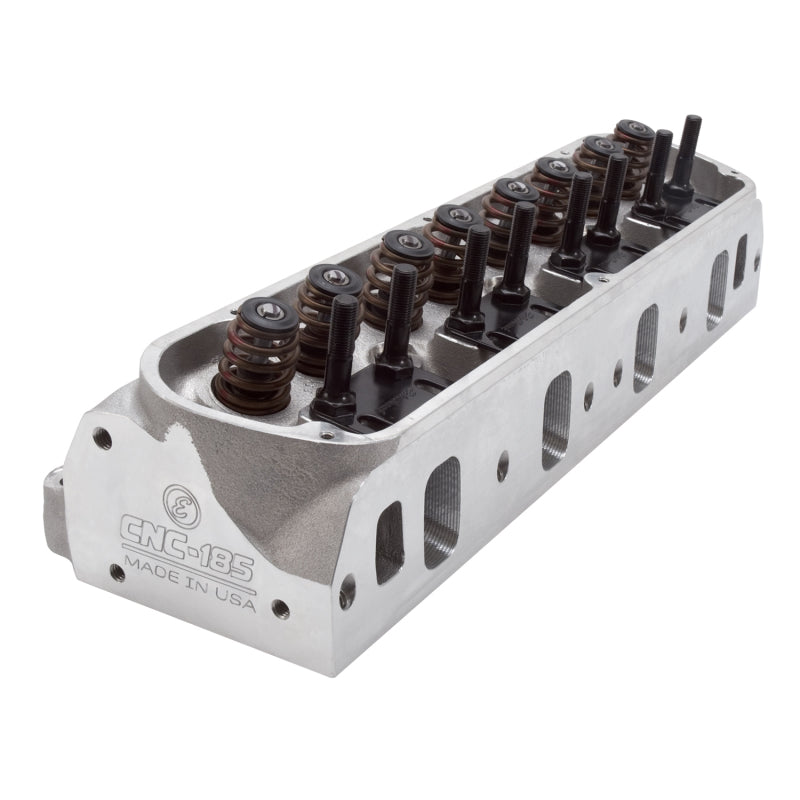

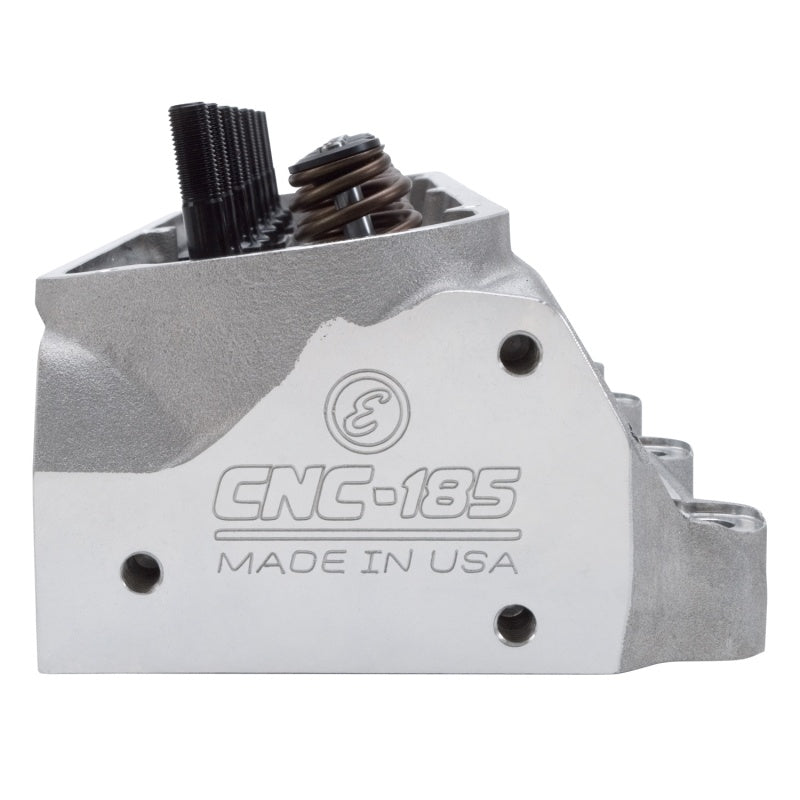

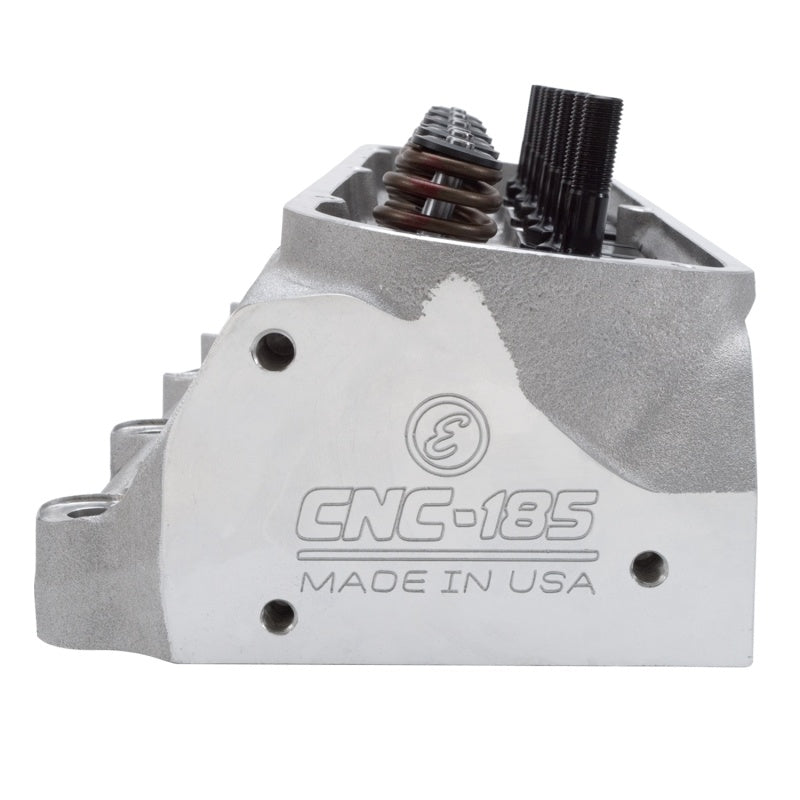

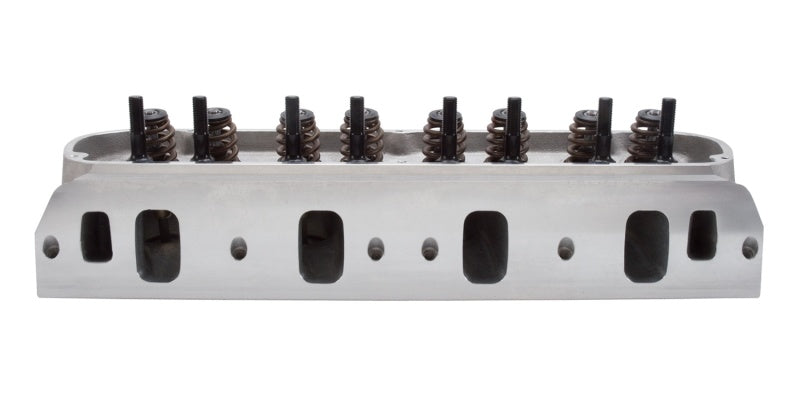

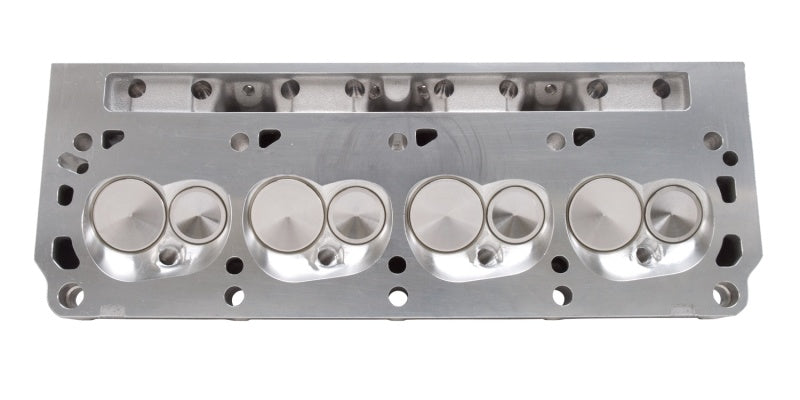

Edelbrock Cyl Head E-Cnc 185 SBF Complete
