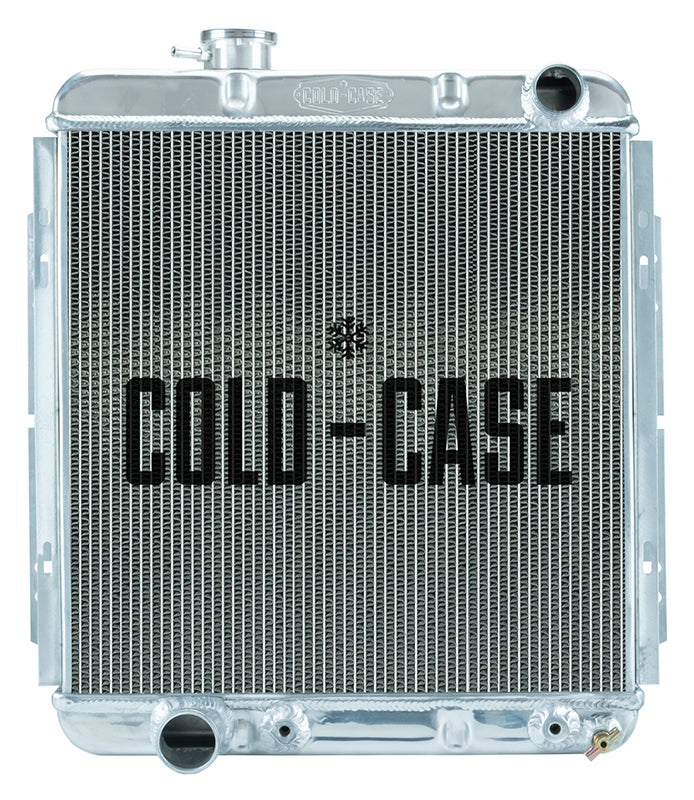

1964.5-1966 Ford Mustang Aluminum Performance Radiator. AT Cars. Same as FOM564, but with staggered inlet/outlet for later model engine swap. Also fits 1963-1965 Falcon and 1960-1965 Comet with engine swap.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Original fan shroud will mount with original mounting brackets. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Auto trans
- Direct fitment for 64.5-66 Mustang w/ 5.0L V8
Radiator Specs
Core Height 16.5 inch
Core Width 16.85 inch
Overall Height 21 inch
Overall Width 19.6 inch
Overall Thickness 3 inch
Tubes (2) 1.25 inch Tubes
