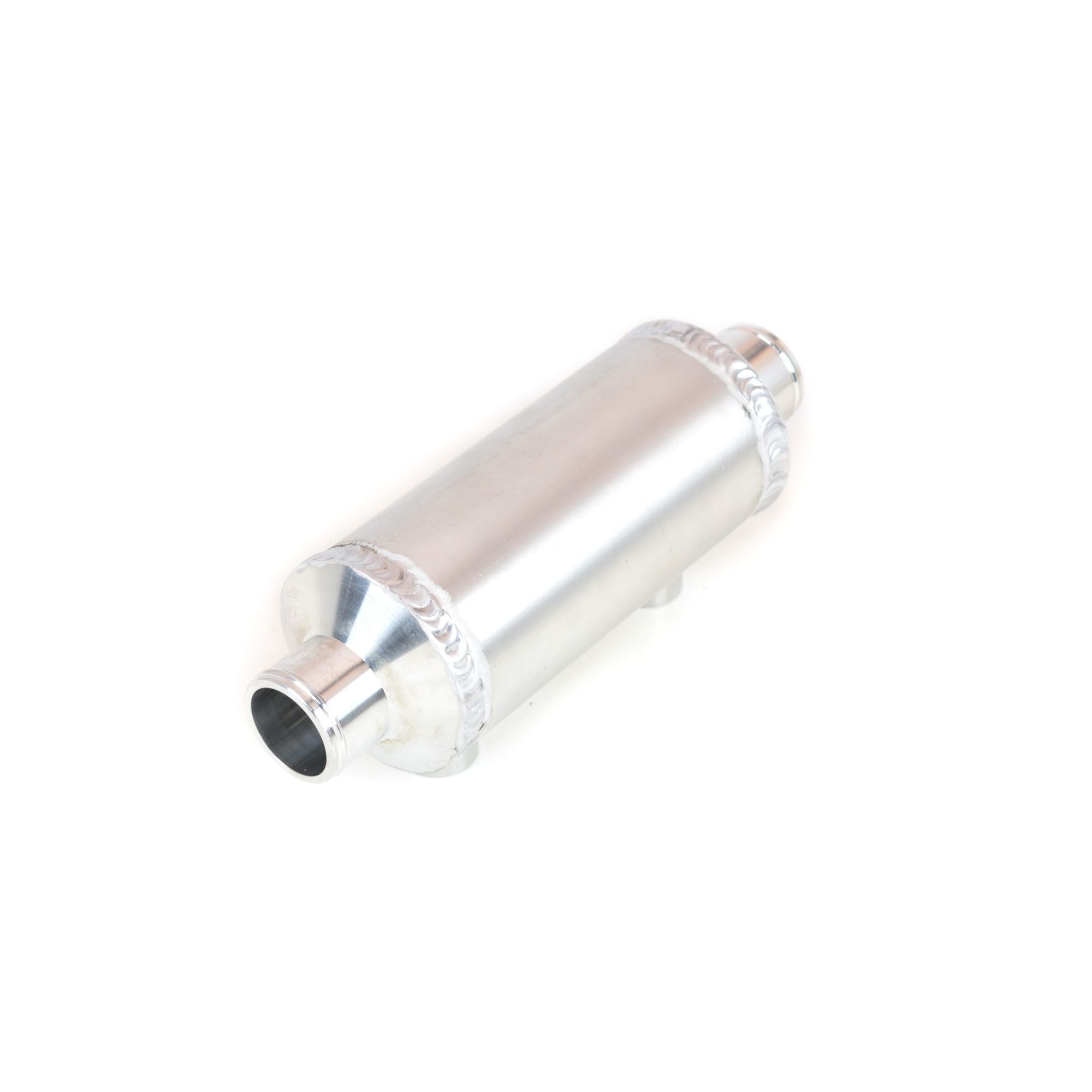

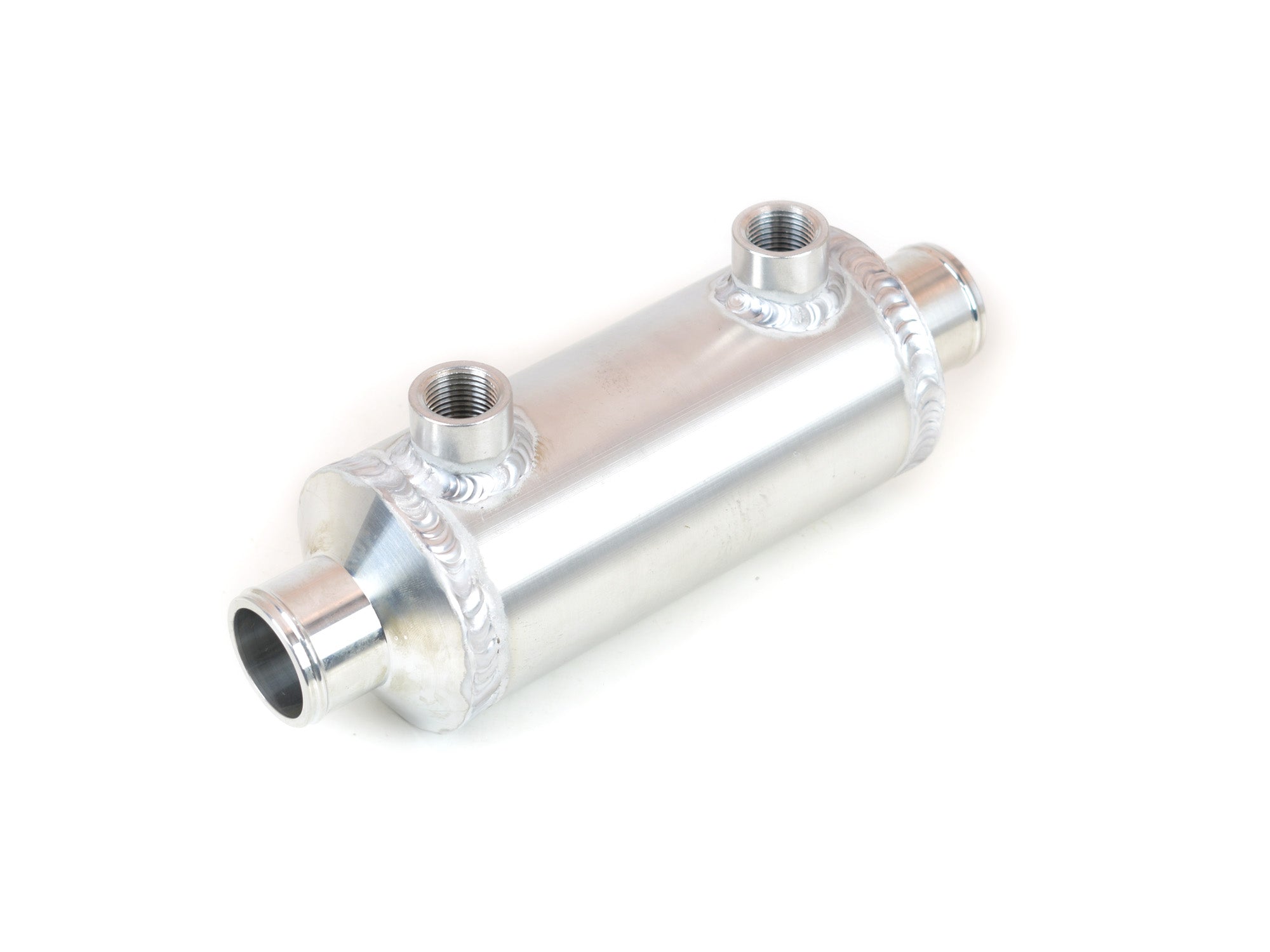

Canton 82-160 Aluminum Tube Heat Exchanger 3 Inch Diameter 6 Inch Long
$309.60 USD
By Canton
SKU: BGTF-82-160
This liquid to liquid heat exchanger can be plumbed inline on a radiator return line and plumbed into the oiling system through the 1/2" NPT fittings. This heat exchanger is designed to help stabilize and lower engine temperatures in cars that have limited space.
Additional Attributes:
- GTIN:
- Feature 1: 6" Long 3" Diameter
- Feature 10: Double leak tested
- Feature 2: Billet CNC'd End Caps
- Feature 3: 14 Tubes for Optimum Heat Transfer
- Feature 4: 1.5" Hose Connections
- Feature 5: 1.4" internal passage tubes
- Feature 6: Easy to clean tubular design
- Feature 7: Billet aluminum end caps
- Feature 8: Tig welded
- Feature 9: Internally baffled
- Finish: Raw Aluminum
- Material: 6061 Aluminum
Extened Information:
- Emissions : Emission verification to be determined in ACES, vehicle application data.
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 11 x 9.5 x 5 inches
