Canton 25-464F CM Oil Filter 6.25" Spin-On 3/4-16 Std. O-Ring Red W/ Stand Pipe

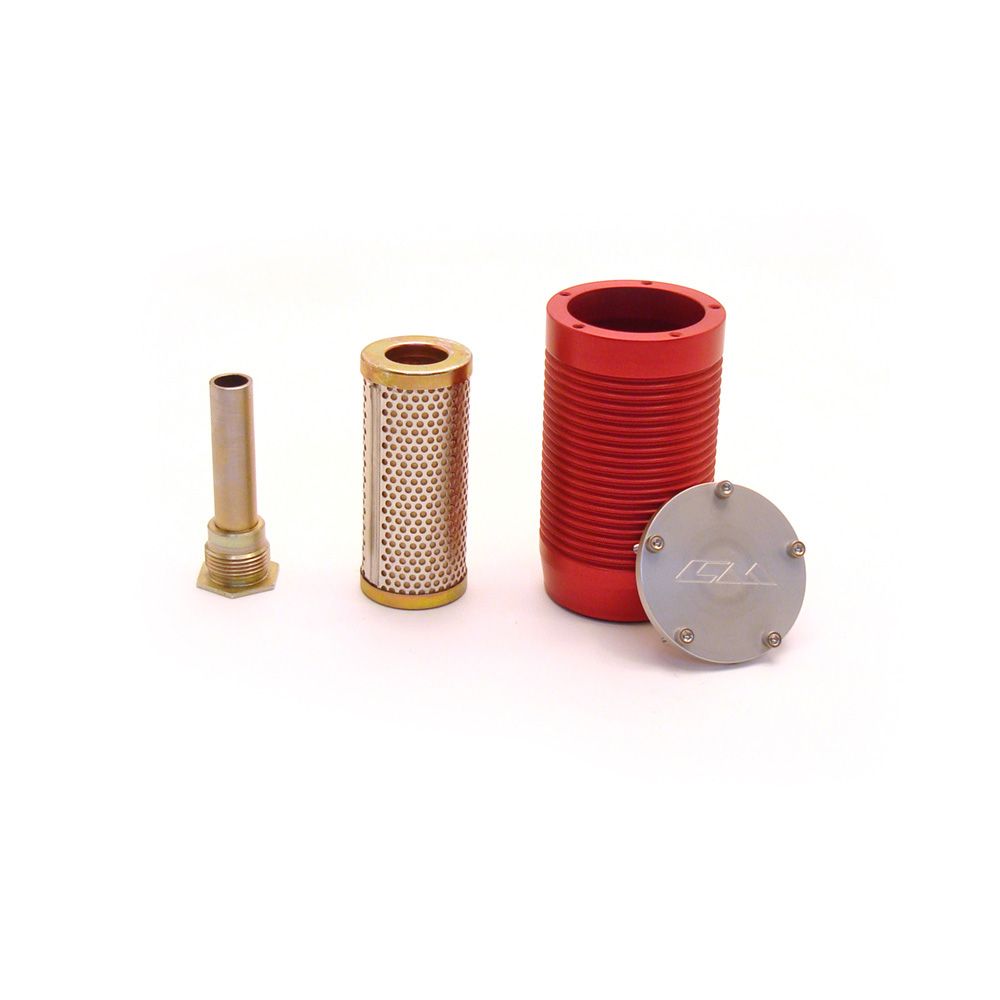

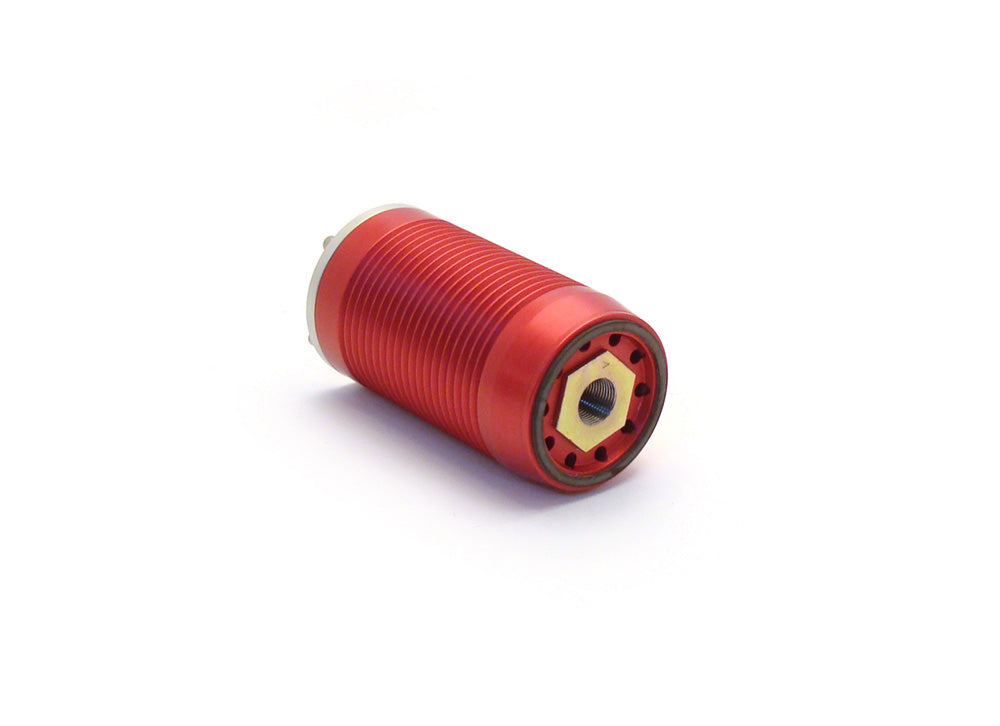

This 6.25" tall billet spin-on filter has 3/4"-16 threads and a standard size o-ring. Like all CM filters it features a billet aluminum body built for strength and durability for a lifetime of use. Heat sink ribs add to filter's functionality and aggressive aesthetic. The filters bottom cap is easily removed with four bolts for filter element inspection and replacement. A CM 4-5/8" tall synthetic fiber filter element which flows 45 GPM of hot engine oil with no loss of pressure and filters down to 8 microns comes preinstalled.

Additional Attributes:

• GTIN:
• Feature 1: 6.25 in Body
• Feature 2: Flows 45 GPM of hot engine oil
• Feature 3: 8 Micron Sythetic Element pre-installed For High Flow Fine Filtration
• Feature 4: 3/4 -16 Female Nut
• Feature 5: 2 5/8 in Diameter O-Ring Gasket
• Feature 6: Removable End Cap
• Feature 7: Anti-Drainback Standpipe
• Finish: Red ANodize
• Material: Billet Aluminum

Extened Information:

• Emissions : Emission verification to be determined in ACES, vehicle application data.
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each:
• Package UOM:
• Dimension: 8.75 x 4.25 x 4.5 inches
