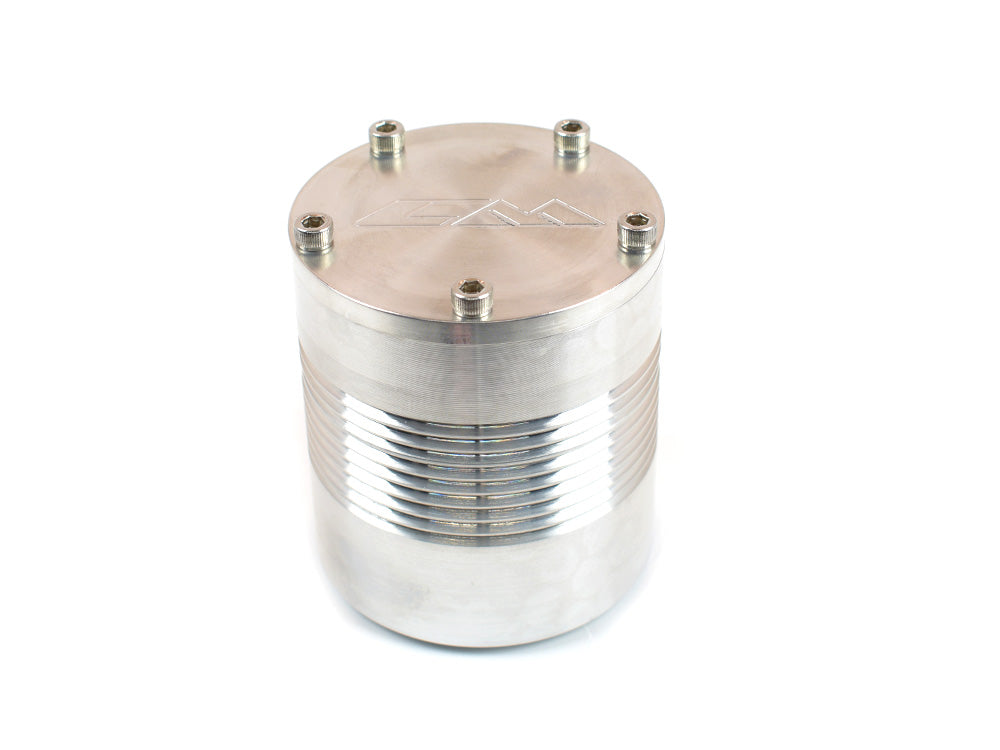

Canton 25-134 CM Oil Filter 3.4 In Spin-On 13/16 In -16 Thread 2 5/8 O Ring

This 3.4" tall billet spin-on filter has 13/16"-16 threads and a standard size o-ring. Like all CM filters it features a billet aluminum body built for strength and durability for a lifetime of use. Heat sink ribs add to filter's functionality and aggressive aesthetic. The filters bottom cap is easily removed with four bolts for filter element inspection and replacement. A CM 2-1/4" tall synthetic fiber filter element which flows 12 GPM of hot engine oil with no loss of pressure and filters down to 8 microns comes preinstalled.

Additional Attributes:

• GTIN:
• Feature 1: 3.4 in Body
• Feature 2: Flows 12 GPM of hot engine oil
• Feature 3: 8 Micron Sythetic Element pre-installed For High Flow Fine Filtration
• Feature 4: 13/16-16 Female Nut

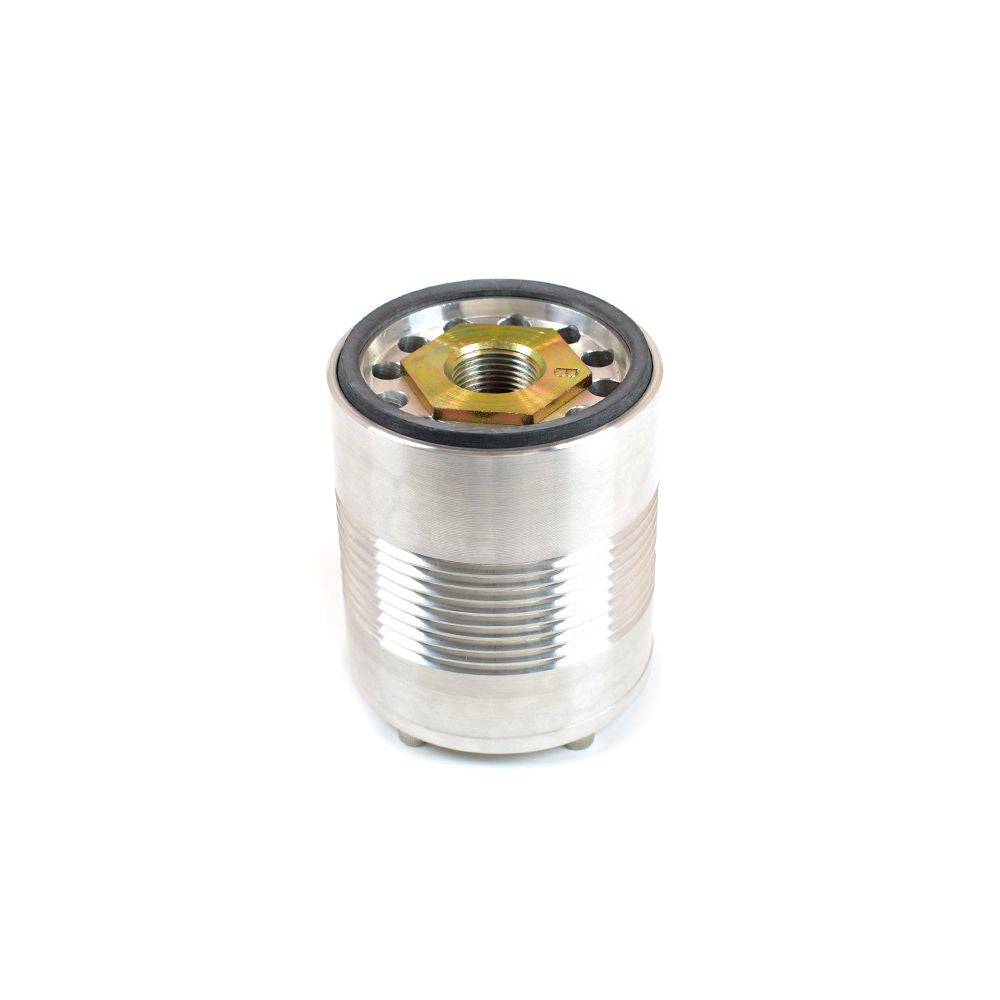

• Feature 5: 2 5/8 in Diameter O-Ring Gasket
• Feature 6: Removable End Cap
• Finish: Raw Aluminum
• Material: Billet Aluminum
• Recommended Accessory 1: 26-200 - 2-1/4" Tall 8 Micron Oil Element - Single
• Recommended Accessory 2: 26-220 - 2-1/4" Tall 8 Micron Oil Element - 6-Pack

Extened Information:

• Emissions : Emission verification to be determined in ACES, vehicle application data.
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each:
• Package UOM:
• Dimension: 5.75 x 4.25 x 4.5 inches

PDF:
